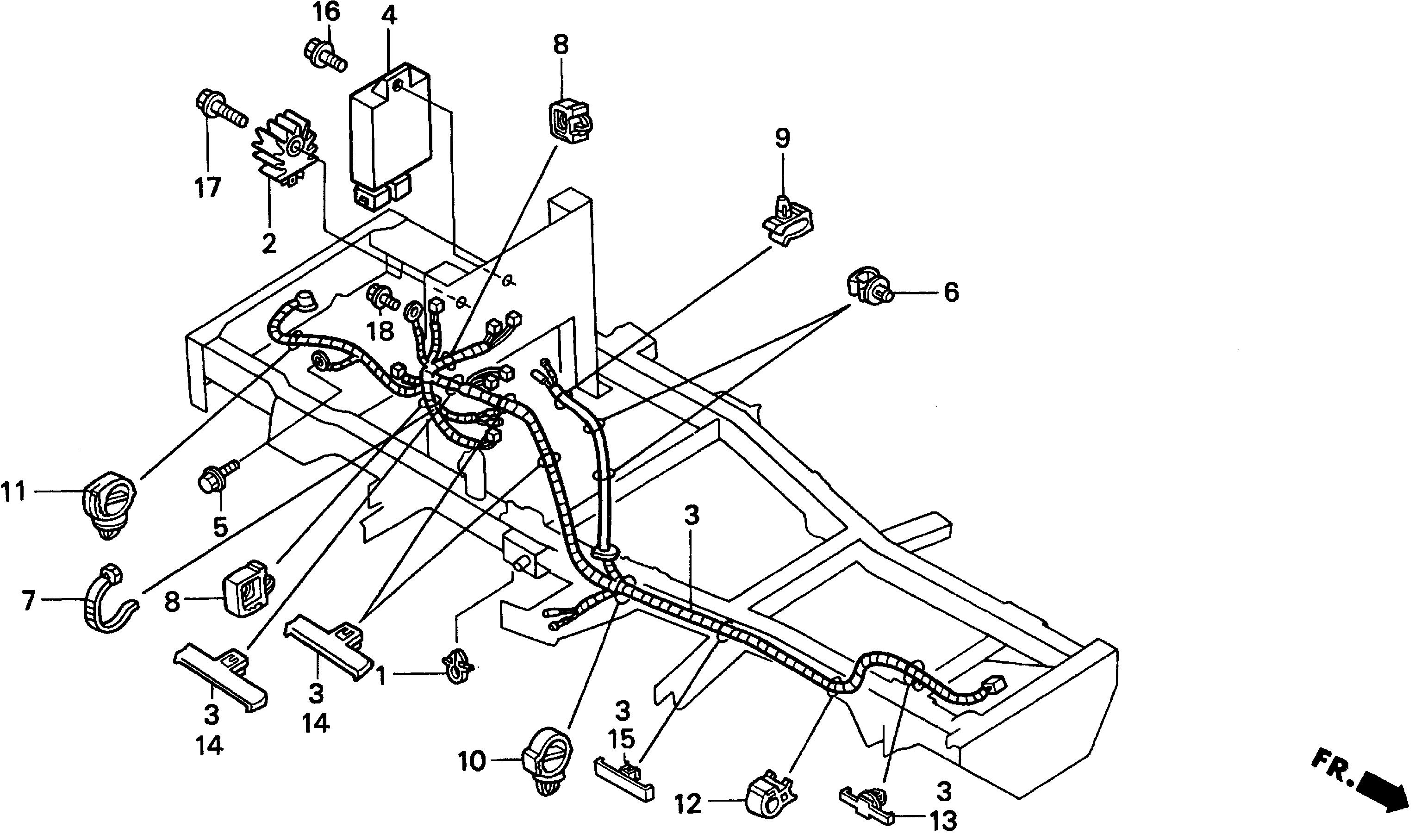

Riding Mower H H3011 H3011H HSA MZAJ-6000001-9999999 WIRE HARNESS - Alpine Smith, Inc.

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
30701-887-790
Description
CLIP, IGNITION WIRE
Serial Range
1000001 - 9999999
Qty
Price
$4.04

Ref No
2
Part Number
31601-197-711
Description
RECTIFIER, REGULATE
Serial Range
1000001 - 9999999
Qty
Price
$30.06

Ref No
2
Part Number
31750-735-013
Description
RECTIFIER, REGULATOR (5A)
Serial Range
1000001 - 9999999
Qty
Price
$30.06

Ref No
3
Part Number
32100-763-D01
Description
WIRE HARNESS ASSY., MAIN (NOT AVAILABLE)
Serial Range
1000001 - 6001453

Ref No
3
Part Number
32100-763-D02
Description
WIRE HARNESS ASSY., MAIN
Serial Range
6001454 - 9999999
Qty
Price
$185.58

Ref No
4
Part Number
38450-763-D03
Description
RELAY ASSY., COMBINATION
Serial Range
1000001 - 9999999
Qty
Price
$194.52

Ref No
5
Part Number
90153-SE0-003
Description
BOLT, GROUND (6X12)
Serial Range
1000001 - 9999999
Qty
Price
$0.80

Ref No
6
Part Number
90603-ZA0-921
Description
CLIP, WIRE HARNESS
Serial Range
1000001 - 9999999
Qty
Price
$1.66

Ref No
7
Part Number
90651-KV6-003
Description
BAND, WIRE (165MM) (BLACK)
Serial Range
1000001 - 9999999
Qty
Price
$3.60

Ref No
8
Part Number
90651-750-801
Description
CLIP, HARNESS (10MM)
Serial Range
1000001 - 9999999
Qty
Price
$2.98

Ref No
9
Part Number
90659-735-921
Description
CLIP, CORD
Serial Range
1000001 - 9999999
Qty
Price
$2.36

Ref No
10
Part Number
90681-763-A01
Description
CLIP, WIRE HARNESS
Serial Range
1000001 - 9999999
Qty
Price
$8.76

Ref No
11
Part Number
90683-SA0-003
Description
CLIP, WIRE HARNESS (25MM)
Serial Range
1000001 - 9999999
Qty
Price
$10.28

Ref No
12
Part Number
90690-GHB-631
Description
CLIP, CABLE (8MM)
Serial Range
1000001 - 9999999
Qty
Price
$2.16

Ref No
13
Part Number
91507-752-003
Description
CLIP, WIRE HARNESS (50MM) (GRAY)
Serial Range
5005583 - 9999999
Qty
Price
$11.22

Ref No
14
Part Number
91508-752-003
Description
CLIP, WIRE HARNESS
Serial Range
1000001 - 9999999
Qty
Price
$7.04

Ref No
15
Part Number
91553-SF4-003
Description
CLIP, WIRE HARNESS (BLACK)
Serial Range
1000001 - 9999999
Qty
Price
$5.70

Ref No
16
Part Number
95701-06012-00
Description
BOLT, FLANGE (6X12)
Serial Range
1000001 - 9999999
Qty
Price
$1.66

Ref No
17
Part Number
95701-06030-08
Description
BOLT, FLANGE (6X30)
Serial Range
1000001 - 9999999
Qty
Price
$2.24
