Riding Mower H H3011 H3011 SA MZAJ-5000001-6000000 REAR AXLE@REAR WHEEL - Alpine Smith, Inc.

  1. Product Lines
  2. Riding Mower
  3. H
  4. H3011

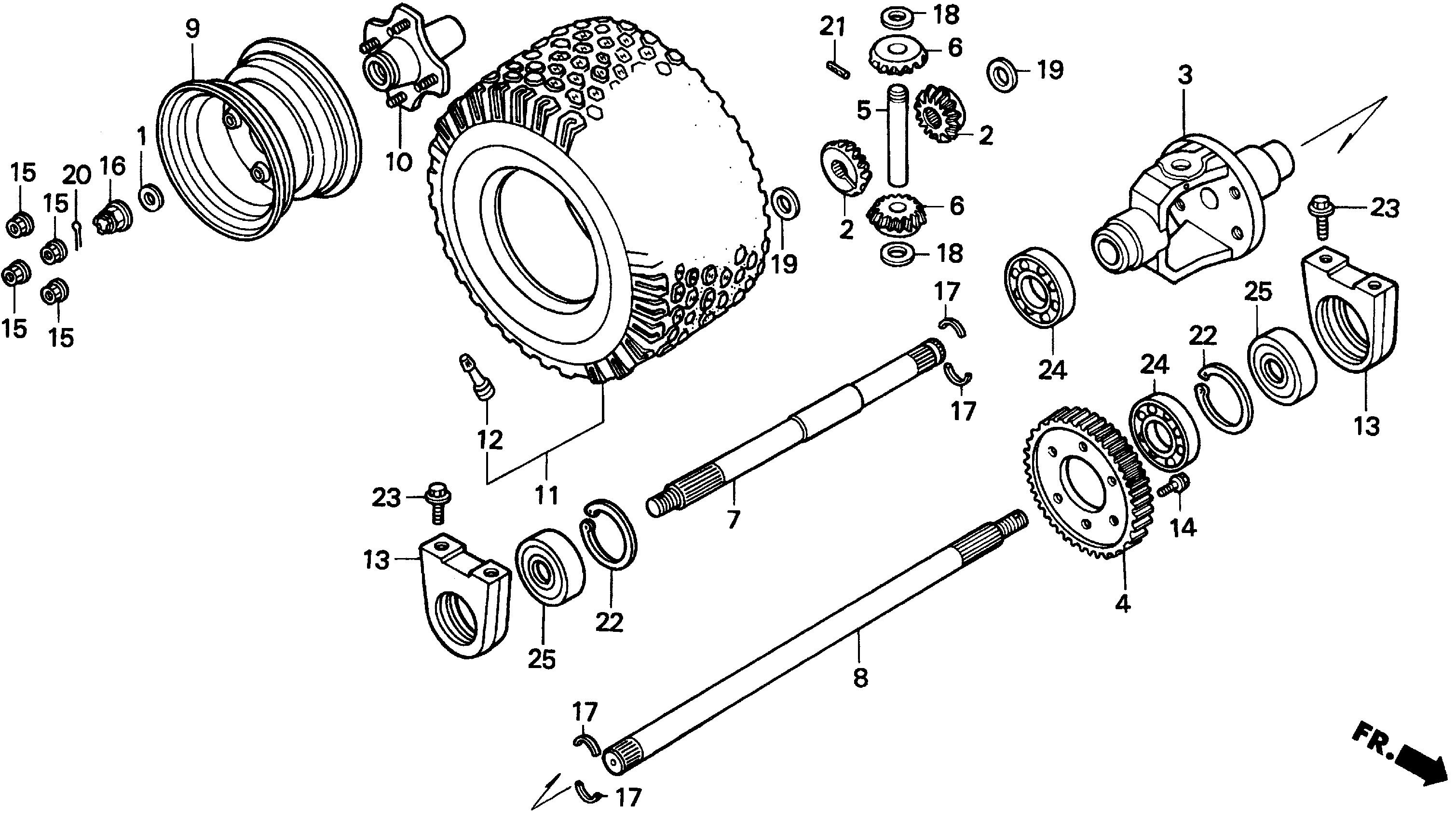

  5. H3011 SA MZAJ-5000001-6000000
  6. REAR AXLE@REAR WHEEL

WARNING: California Prop 65 Information

Ref No
Part Number
Description
Serial Range
Qty
Price
Ref No
1
Part Number
 14778-PA6-003
Description
 WASHER (26MM) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
2
Part Number
 41241-751-700
Description
 GEAR, DIFFERENTIAL
Serial Range
 1000001 - 9999999
Qty
Price
 $73.60
Ref No
3
Part Number
 41311-751-000
Description
 CASE, DIFFERENTIAL GEAR (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
4
Part Number
 41312-763-A00
Description
 GEAR, FINAL DRIVEN (48T) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
5
Part Number
 41321-751-000
Description
 SHAFT, DIFFERENTIAL
Serial Range
 1000001 - 9999999
Qty
Price
 $20.18
Ref No
6
Part Number
 41341-751-000
Description
 PINION, DIFFERENTIAL
Serial Range
 1000001 - 9999999
Qty
Price
 $69.20
Ref No
7
Part Number
 41410-751-700
Description
 SHAFT, R. AXLE (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
8
Part Number
 41420-751-700
Description
 SHAFT, L. AXLE
Serial Range
 1000001 - 9999999
Qty
Price
 $140.16
Ref No
9
Part Number
 42711-763-A01ZA
Description
 RIM, WHEEL *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
11
Part Number
 42751-763-505
Description
 TIRE, RR. TUBELESS (16X6.50-8NHS) (GOODYEAR)
Serial Range
 1000001 - 9999999
Qty
Price
 $160.60
Ref No
11
Part Number
 42751-763-A01
Description
 TIRE, RR. TUBELESS (16X6.50-8NHS) (GOODYEAR)
Serial Range
 1000001 - 9999999
Ref No
12
Part Number
 42753-VM0-003
Description
 VALVE, RIM
Serial Range
 1000001 - 9999999
Qty
Price
 $13.14
Ref No
13
Part Number
 50123-763-A00
Description
 HOLDER, BEARING
Serial Range
 1000001 - 9999999
Qty
Price
 $86.78
Ref No
14
Part Number
 90113-750-000
Description
 BOLT, SPECIAL (10X17)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.52
Ref No
15
Part Number
 90304-763-A01
Description
 NUT, WHEEL (12X1.5)
Serial Range
 1000001 - 9999999
Qty
Price
 $6.52
Ref No
16
Part Number
 90305-401-680
Description
 NUT, AXLE (14MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $14.86
Ref No
17
Part Number
 90502-751-700
Description
 COTTER (15MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $12.08
Ref No
18
Part Number
 90521-751-000
Description
 WASHER A, DIFFERENTIAL PINION (14.2X26X0.7)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.84
Ref No
18
Part Number
 90522-751-000
Description
 WASHER B, DIFFERENTIAL PINION (14.2X26X0.8)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.84
Ref No
18
Part Number
 90523-751-000
Description
 WASHER C, DIFFERENTIAL PINION (14.2X26X0.9)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.84
Ref No
18
Part Number
 90524-751-000
Description
 WASHER D, DIFFERENTIAL PINION (14.2X26X1.0)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.84
Ref No
19
Part Number
 90525-750-000
Description
 WASHER, DIFFERENTIAL GEAR
Serial Range
 1000001 - 9999999
Qty
Price
 $5.14
Ref No
20
Part Number
 94201-30250
Description
 PIN, SPLIT (3.0X25)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.24
Ref No
20
Part Number
 94201-30450
Description
 PIN, SPLIT (3.0X45)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.24
Ref No
21
Part Number
 94305-40322
Description
 PIN, SPRING (4X32)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.72
Ref No
22
Part Number
 94520-47000
Description
 CIRCLIP, INNER (47MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.82
Ref No
23
Part Number
 95701-10016-08
Description
 BOLT, FLANGE (10X16)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.70
Ref No
24
Part Number
 96100-60060-00
Description
 BEARING, RADIAL BALL (6006)
Serial Range
 1000001 - 9999999
Qty
Price
 $16.74
Ref No
25
Part Number
 96150-62040-10
Description
 BEARING, RADIAL BALL (6204UU)
Serial Range
 1000001 - 9999999
Qty
Price
 $25.66
